noscript{position: fixed}TLSHELLO 分片能突破备案检测？日常分享ja3TLS创建时间：2024-05-31 22:57:16

TCP 分片

TCP 是一种基于流的协议，用户和应用程序可以通过该协议使用抽象数据流发送数据。TCP 将这些数据流转换为实际的网络数据包（称为 TCP Segment）。每个 TCP Segment可以包含完整的应用程序消息，也可以仅包含部分消息。后者称为 TCP 分片。如下所示，以 HTTP GET 消息表示。

==================TCP Segment====================
=	GET /index.html HTTP/1.1	  	=
=	host: proxyguess.bjun.tech 		=
=	...	  				=
=		  				=
=		  				=
=================================================

		    | |
		     V

==================TCP Segment 1==================
=	GET /index.html HTTP/1.1	  	=
=	host: proxyguess  			=
=		  				=
=		  				=
=		  				=
=================================================

==================TCP Segment 2==================
=	.bjun.tech 				=
=	...	  				=
=		  				=
=		  				=
=		  				=
=================================================

上面的部分TCP Segment包含了一个未分片的HTTP GET 请求，
下面的部分是分片后的2个TCP Segment与前面做的事情一致。

TLS RECORD 分片

虽然 TLS 消息可以分片到多个 TCP 段，但它们也可以单独在 TLS 层上分片。这是可能的，因为 TLS 层由两个不同的层组成：TLS 消息层和 TLS 记录层。在 TLS 记录层上，每个 TLS 消息都包装在 TLS 记录结构中。最重要的是，单个 TLS 消息可以拆分到多个 TLS 记录中，从而导致 TLS 记录碎片。如下图所示。

==================TCP Segment======================
= =================TLS Record==================== =
= =0x010000D5	  				= =
= =SNI:proxyguess.bjun.tech			= =
= =		  				= =
= =		  				= =
= =		  				= =
= =============================================== =
===================================================

		    | |
		     V

==================TCP Segment======================
= =================TLS Record 1================== =
= =0x010000D5	  				= =
= =SNI:proxyguess.				= =
= =		  				= =
= =		  				= =
= =		  				= =
= =============================================== =
=						  =
= =================TLS Record 2================== =
= =bjun.tech	  				= =
= =						= =
= =		  				= =
= =		  				= =
= =		  				= =
= =============================================== =
===================================================

		    | |
		     V
================== IP PACKAGE 1======================
===================TCP Segment ======================
= = =================TLS Record 1================ = =
= = =0x010000D5	  				= = =
= = =SNI:proxyguess.				= = =
= = =		  				= = =
= = =		  				= = =
= = =		  				= = =
= = ============================================= = =
= ================================================= =
=====================================================

================== IP PACKAGE 2======================
===================TCP Segment ======================
= = =================TLS Record 1================ = =
= = =bjun.tech	 				= = =
= = = 						= = =
= = =		  				= = =
= = =		  				= = =
= = =		  				= = =
= = ============================================= = =
= ================================================= =
=====================================================

上面的部分表示一个完整的TCP Segment和TLS RECORD中的 TLS ClientHello ，
中间的部分是在同个TCP Segment中包含了被分片后的TLS ClientHello 对应的两个TLS RECORD。
下面的部分将分片后的TLS ClientHello 对应的两个TLS RECORD 分配到 2个IP数据包中

测试

配置

这是某软件的配置，这里拿他在做TLSHELLO 分片器

{
  "inbounds": [

    {
	"tag": "inbound-1080",
      "port": 1080, // SOCKS 代理端口，在浏览器中需配置代理并指向这个端口
      "listen": "127.0.0.1",
      "protocol": "socks",
      "settings": {
        "udp": true
      }
    }
  ],
  "outbounds": [
    {
	"tag": "fragment",
      "protocol": "freedom",
      "settings": {
        "fragment": {
          "packets": "tlshello",
          "length": "100-200",//分片长度
          "interval": "0-1"//分片发送时间间隔 ms
        }
      },
      "streamSettings": {
        "sockopt": {
          "TcpNoDelay": true,
          "mark": 255
        }
      }
    }
  ],
  "routing": {

    "domainStrategy": "AsIs",
    "rules": [
      {
        "type": "field",
         "inboundTag": ["inbound-1080"],
        "outboundTag": "fragment"
      }
    ]
  }
}

测试

正常

curl https://bjun.tech:9764/demo/ja3/ja3.php
{"client":{"ja3":"bd0bf25947d4a37404f0424edf4db9ad","ja3_str":"771,49196-49195-49200-49199-159-158-49188-49187-49192-49191-49162-49161-49172-49171-157-156-61-60-53-47-10,0-5-10-11-13-35-16-23-65281,29-23-24,0","ja4":"t12d2109h1_76e208dd3e22_7af1ed941c26","ja4_o":"t12d2109h1_93eee3d26c42_5da3d607c71a","ja4_r":"t12d2109h1_000a,002f,0035,003c,003d,009c,009d,009e,009f,c009,c00a,c013,c014,c023,c024,c027,c028,c02b,c02c,c02f,c030_0005,000a,000b,000d,0017,0023,ff01_0804,0805,0806,0401,0501,0201,0403,0503,0203,0202,0601,0603","ja4_ro":"t12d2109h1_c02c,c02b,c030,c02f,009f,009e,c024,c023,c028,c027,c00a,c009,c014,c013,009d,009c,003d,003c,0035,002f,000a_0000,0005,000a,000b,000d,0023,0010,0017,ff01_0804,0805,0806,0401,0501,0201,0403,0503,0203,0202,0601,0603"},"sever":{"ja3s":"1af33e1657631357c73119488045302c","ja3s_str":"771,49199,65281-11-35-23","ja4s":"t120400_c02f_12a20535f9be","ja4_ro":"t120400_c02f_ff01,000b,0023,0017"}}

启用TLSHELLO 分片

curl -x socks5://127.0.0.1:1080 https://bjun.tech:9764/demo/ja3/ja3.php
{"client":{"ja3":"1c2d6b64d730549b97c138d092a8ca05","ja3_str":"771,49196-49195-49200-49199-159-158-49188-49187-49192-49191-49162-49161-49172-49171-157-156-61-60-53-47-10,0-5-10-11-13-35-16---,29-23-24,0","ja4":"t12d211000_76e208dd3e22_ed8d2d8aa674","ja4_o":"t12d211000_93eee3d26c42_c06c60c54598","ja4_r":"t12d211000_000a,002f,0035,003c,003d,009c,009d,009e,009f,c009,c00a,c013,c014,c023,c024,c027,c028,c02b,c02c,c02f,c030_0000,0000,0000,0005,000a,000b,000d,0023_0804,0805,0806,0401,0501,0201,0403,0503,0203,0202,0601,0603","ja4_ro":"t12d211000_c02c,c02b,c030,c02f,009f,009e,c024,c023,c028,c027,c00a,c009,c014,c013,009d,009c,003d,003c,0035,002f,000a_0000,0005,000a,000b,000d,0023,0010,0000,0000,0000_0804,0805,0806,0401,0501,0201,0403,0503,0203,0202,0601,0603"},"sever":{"ja3s":"1af33e1657631357c73119488045302c","ja3s_str":"771,49199,65281-11-35-23","ja4s":"t120400_c02f_12a20535f9be","ja4_ro":"t120400_c02f_ff01,000b,0023,0017"}}

ja3 是一个TLS hello 的指纹，具体看一看php-JA3 TLS握手指纹实践3 - 纯php实现

这里的可以看到ja3获取了一个很奇怪的值，明显是错误的。从Ja3_str中可以发现，部分拓展是没获取到的。
说明这里的TLSHELLO 分片对我的JA3指纹获取形成了干扰。原因是我只取了一个数据包用于指纹提取，而这个数据包是部分的握手内容，自然就出现了错误。

注意：使用使用winshark,tshark等抓包工具，其中的Ja3等指纹是正确的。（因为他们由专门为这个问题进行数据重组，见文末的连接）

突破备案检测测试

那么，好奇心就来了。能突破腾讯云的备案检测吗。众所周知，备案检测是同个检测HTTPS握手包中的SNI进行判断的。那么TLSHELLO分片能对其产生干扰吗。

触发备案拦截

域名配置到服务器中，这里使用不存在的域名 bjun.test
发起一个http请求访问，过一段时间，可能几个小时后，就会稳定的返回网址无法访问：网站内容和备案信息不准确…… 的页面提示

curl -k  --resolve bjun.test:80:42.194.183.26 http://bjun.test/ip.php -vvv

* Added bjun.test:80:42.194.183.26 to DNS cache
* Hostname bjun.test was found in DNS cache
*   Trying 42.194.183.26:80...
* Connected to bjun.test (42.194.183.26) port 80
> GET /ip.php HTTP/1.1
> Host: bjun.test
> User-Agent: curl/8.4.0
> Accept: */*
>
< HTTP/1.1 302 OK
< Connection: Keep-Alive
< Location: https://dnspod.qcloud.com/static/webblock.html?d=bjun.test
* no chunk, no close, no size. Assume close to signal end
<
* Closing connection

发起一天https请求，会在握手到得到一个RST的TCP 数据包。

curl -k  --resolve bjun.test:443:42.194.183.26 https://bjun.test/ip.php -vvv

* Added bjun.test:443:42.194.183.26 to DNS cache
* Hostname bjun.test was found in DNS cache
*   Trying 42.194.183.26:443...
* Connected to bjun.test (42.194.183.26) port 443
* schannel: disabled automatic use of client certificate
* ALPN: curl offers http/1.1
* Recv failure: Connection was reset
* schannel: failed to receive handshake, SSL/TLS connection failed
* Closing connection
* schannel: shutting down SSL/TLS connection with bjun.test port 443
* Send failure: Connection was reset
* schannel: failed to send close msg: Failed sending data to the peer (bytes written: -1)
curl: (35) Recv failure: Connection was reset

就此，未备案拦截已经成功触发。

启动 TLSHELLO 分片测试

100-200 长度分片，失败

curl -x socks5://127.0.0.1:1080 -k  --resolve bjun.test:443:42.194.183.26 https://bjun.test/ip.php   -vvv


* Added bjun.test:443:42.194.183.26 to DNS cache
*   Trying 127.0.0.1:1080...
* Connected to 127.0.0.1 (127.0.0.1) port 1080
* Hostname bjun.test was found in DNS cache
* SOCKS5 connect to 42.194.183.26:443 (locally resolved)
* SOCKS5 request granted.
* Connected to 127.0.0.1 (127.0.0.1) port 1080
* schannel: disabled automatic use of client certificate
* ALPN: curl offers http/1.1
* schannel: failed to receive handshake, SSL/TLS connection failed
* Closing connection
* schannel: shutting down SSL/TLS connection with bjun.test port 443
curl: (35) schannel: failed to receive handshake, SSL/TLS connection failed

100-150 长度分片，失败
100-130 长度分片，部分成功
100-120 长度分片，稳定成功
30-50 长度分片，稳定成功

curl -x socks5://127.0.0.1:1080 -k  --resolve bjun.test:443:42.194.183.26 https://bjun.test/ip.php   -vvv

* Added bjun.test:443:42.194.183.26 to DNS cache
*   Trying 127.0.0.1:1080...
* Connected to 127.0.0.1 (127.0.0.1) port 1080
* Hostname bjun.test was found in DNS cache
* SOCKS5 connect to 42.194.183.26:443 (locally resolved)
* SOCKS5 request granted.
* Connected to 127.0.0.1 (127.0.0.1) port 1080
* schannel: disabled automatic use of client certificate
* ALPN: curl offers http/1.1
* ALPN: server accepted http/1.1
* using HTTP/1.1
> GET /ip.php HTTP/1.1
> Host: bjun.test
> User-Agent: curl/8.4.0
> Accept: */*
>
< HTTP/1.1 200 OK
< Server: nginx/1.20.2
< Date: Fri, 31 May 2024 16:58:59 GMT
< Content-Type: text/html; charset=UTF-8
< Transfer-Encoding: chunked
< Connection: keep-alive
< Vary: Accept-Encoding

……

好吧，稳定突破触发备案拦截

抓包后的简单结论

client hello 被分成2个IP包，部分请求SNI 拓展位于第二个包，部分请求是刚好在SNI部分被分割。而小段分片则SNI拓展必然不会出现的第一个包中。

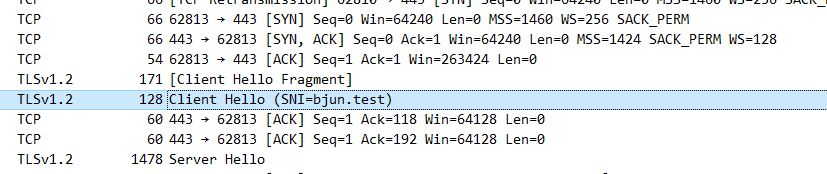

TLSHELLO 分片 tshark抓包

由此可以推测，腾讯云的备案拦截和我的JA3代码一样没有注意到这个问题，也是同个首个包去判断的。

思考

用途

突破备案鄙人觉得没啥卵用。哪个正常用户会有这样的环境呢？大费周章，还不如换个端口来的简单。

修复

像我的JA3 和备案防火墙应该怎么修复这个问题呢？或许可以参考winshark的处理办法，进行包重组。当然这需要一定代价。

只从我的JA3 思考

针对TLS 握手维护TLS RECORD 的状态，但这需要缓存前后这几个包的数据。会增加内存使用和计算量，同时可能被针对性攻击。
从openssl中获取JA3，也就是在TLS RECORD 重组后再处理，类似nginx或者ja3拓展的思路。当然，php应该是做不到的。
屏蔽该情况的数据包对应的请求，至少在我的观察，到目前，正常的网络中TLSHELLO 分片的数据包可是太罕见了。

记于：2024年6月1日。后续我的JA3有更新或者备案防火墙有更新再补充。

其他

scrapfly.io JA3

scrapfly.io 开发的指纹获取工具，scrapfly.io https://tools.scrapfly.io/api/tls，通过TLS HELLO 分片访问会报错。

这里用的是 curl-impersonate-win，我电脑的curl 可能是应该不支持H2，这个网站访问不了

.\curl_chrome104.bat -x socks5://127.0.0.1:1080  https://tools.scrapfly.io/api/tls
404 page not found

参考

tls-record-protocol
An issue that took ten years to fix in winshark
