乌龙

好吧，这是一个乌龙事件。我发现了这个奇怪现象的前提：

chrome打开了devtool，并保持在【网络】的选项卡

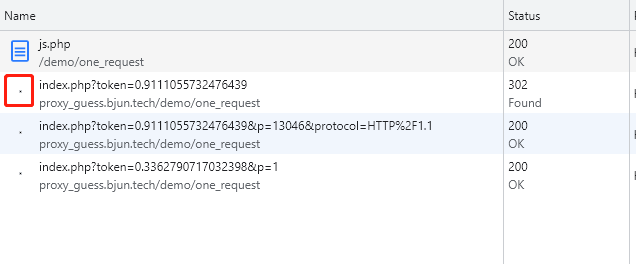

原因是：在加载这种302带跳转的图片时，devtool显示缩略图时会再加载一遍。
一个(302)图片请求可以占用4个端口

测试代码

测试浏览器为：

Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/106.0.0.0 Safari/537.36

php部分

<?php
if(empty($_GET['token'])){
        $_GET['token'] = rand(0,999999);
}
function wlog($text){
        $path_file = __DIR__.'/'.'one_request.log';
        file_put_contents($path_file,date('Y-m-d H:i:s').' '. (is_array($text)?json_encode($text):$text)."\n", FILE_APPEND);
};

$params = [
                'token'=>$_GET['token'],
                'p'=>$_SERVER['REMOTE_PORT'],
                'protocol'=>$_SERVER['SERVER_PROTOCOL']

        ];

if(empty($_GET['p'])){

        header('port:'.$_SERVER['REMOTE_PORT']);
        header('Location: index.php?'.http_build_query($params));

        wlog($params);
        exit;
}else{
        header('port:'.$_SERVER['REMOTE_PORT']);
        wlog($params);
           header('content-type:image/png');
        echo base64_decode('iVBORw0KGgoAAAANSUhEUgAAAAEAAAABCAIAAACQd1PeAAAACXBIWXMAAA7EAAAOxAGVKw4bAAAADElEQVQI12NgYGAAAAAEAAEnNCcKAAAAAElFTkSuQmCC');

        exit;
}

img tag

let image = new Image();
let token = Math.random()
	image.onload = function(){

	}
image.src = "index.php?token="+token;

nginx 部分

#	keepalive_timeout  0;//default 75

	……
	 listen 443 ssl  ;// http/1.1
#	 listen 443 ssl  http2; //enable H2
	……

通过 http2 选项和 keepalive_timeout 可以搭配出4个组合。

protocol	keepalive_timeout	keep-alive client
H2	75	y
H2	0	x
http/1.1	75	y
http/1.1	0	x

测试数据

H2 and enbale keep-alive

browser address bar

2022-10-20 06:35:44 {"token":161829,"p":"15597","protocol":"HTTP\/2.0"}
2022-10-20 06:35:44 {"token":"161829","p":"15597","protocol":"HTTP\/2.0"}

链接id如图

img tag

2022-10-20 06:36:28 {"token":"0.5107532597240456","p":"15597","protocol":"HTTP\/2.0"}
2022-10-20 06:36:28 {"token":"0.5107532597240456","p":"15597","protocol":"HTTP\/2.0"}
2022-10-20 06:36:28 {"token":"0.5107532597240456","p":"15635","protocol":"HTTP\/2.0"}
2022-10-20 06:36:28 {"token":"0.5107532597240456","p":"15635","protocol":"HTTP\/2.0"}

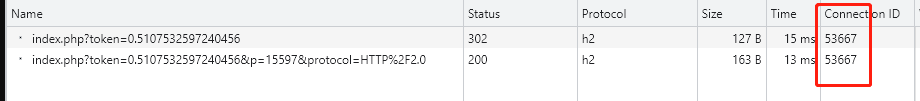

链接id如图

H2 and disabale keep-alive

browser address bar

2022-10-20 06:40:09 {"token":495172,"p":"15776","protocol":"HTTP\/2.0"}
2022-10-20 06:40:09 {"token":"495172","p":"15777","protocol":"HTTP\/2.0"}

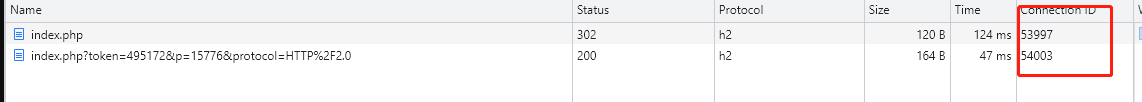

链接id如图

img tag

2022-10-20 06:40:49 {"token":"0.8067361045275498","p":"15833","protocol":"HTTP\/2.0"}
2022-10-20 06:40:49 {"token":"0.8067361045275498","p":"15835","protocol":"HTTP\/2.0"}
2022-10-20 06:40:49 {"token":"0.8067361045275498","p":"15834","protocol":"HTTP\/2.0"}
2022-10-20 06:40:49 {"token":"0.8067361045275498","p":"15836","protocol":"HTTP\/2.0"}

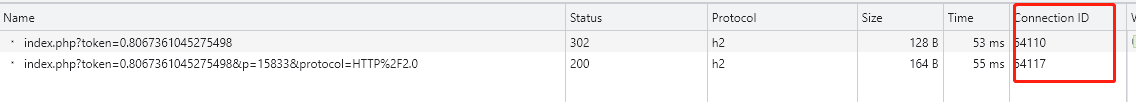

链接id如图

htpp/1.1 and enbale keep-alive

browser address bar

2022-10-20 06:32:57 {"token":229425,"p":"15473","protocol":"HTTP\/1.1"}
2022-10-20 06:32:58 {"token":"229425","p":"15473","protocol":"HTTP\/1.1"}

链接id如图

img tag

2022-10-20 06:23:50 {"token":"0.6276816635368629","p":"14825","protocol":"HTTP\/1.1"}
2022-10-20 06:23:50 {"token":"0.6276816635368629","p":"14825","protocol":"HTTP\/1.1"}
2022-10-20 06:23:50 {"token":"0.6276816635368629","p":"14826","protocol":"HTTP\/1.1"}
2022-10-20 06:23:50 {"token":"0.6276816635368629","p":"14826","protocol":"HTTP\/1.1"}

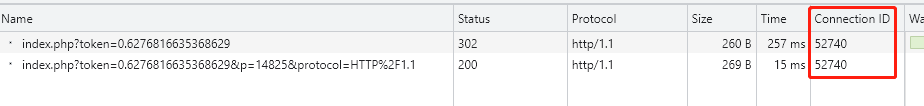

链接id如图

htpp/1.1 and disabale keep-alive

browser address bar

2022-10-20 06:31:21 {"token":293483,"p":"15387","protocol":"HTTP\/1.1"}
2022-10-20 06:31:21 {"token":"293483","p":"15388","protocol":"HTTP\/1.1"}

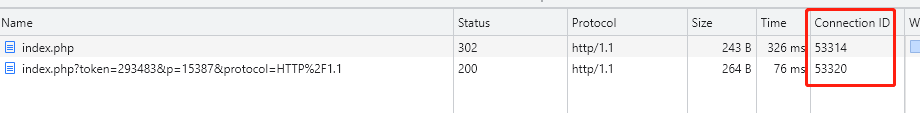

链接id如图

htpp/1.1 and disabale keep-alive browser address bar

img tag

2022-10-20 06:29:48 {"token":"0.5968497764216198","p":"15284","protocol":"HTTP\/1.1"}
2022-10-20 06:29:48 {"token":"0.5968497764216198","p":"15285","protocol":"HTTP\/1.1"}
2022-10-20 06:29:48 {"token":"0.5968497764216198","p":"15286","protocol":"HTTP\/1.1"}
2022-10-20 06:29:48 {"token":"0.5968497764216198","p":"15287","protocol":"HTTP\/1.1"}

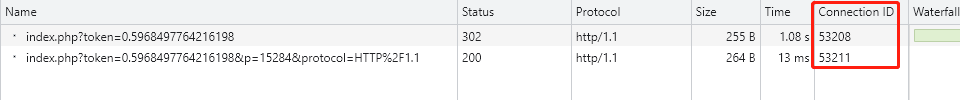

链接id如图

所以呢？奇葩在哪？

首先说些正常的

会话保持开启时，无论通过地址栏还是通过图片访问，H2和http/1.1都会复用原来的请求，使用一个端口。
会话保持关闭时，无论通过地址栏还是通过图片访问，H2和http/1.1都会重新打开一个端口。

奇葩的地方

通过图片访问，居然会触发4个请求，比通过地址栏访问的多出2个！
在H2开启会话保持的时候，通过图片访问，多出来的请求没有复用原来的端口，而是重启打开了一个端口
在HTTP/1.1 关闭会话保持时，通过图片（带302跳转）访问时，居然可以开启4个端口

总结

一个302跳转图片+关闭会话保持，我猜应该不会有人这么干吧。

如果你刚刚好有使用一个302跳转的图片标签做统计或者触发任务，那么你需要考虑重复触发的问题了
会话保持开启 + 302跳转的图片可以在保持性能的情况下让客户端发起额外的一次握手
如果你有端口检测服务，可以考虑 HTTP/1.1 + 会话保持关闭 + 302 图片跳转，当然我想不出这有什么用
1一个请求4个端口触发12次TCP握手+28次TSL握手……,太残忍了，请避免这么做
该问题的原因未知，并且是否所有浏览器都会有该现象，还需要更多测试。

补充

图片不做302跳转是不会出现以上情况。
H2 开启会话保持的情况下，额外的端口在下次额外的请求中会被复用。
